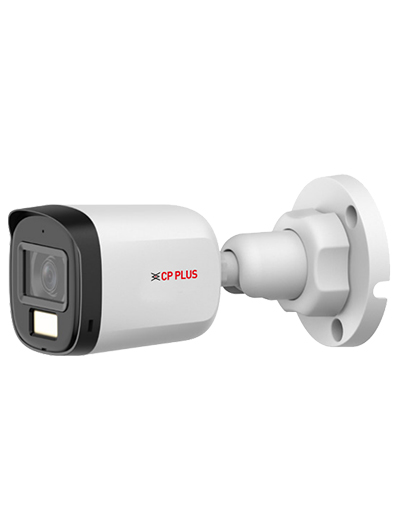

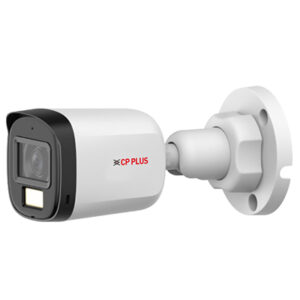

Specification
| Image Sensor | 2.4MP PS CMOS Image Sensor |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Minimum Illumination | 0.02 lux F2.0 (Color, 30 IRE), 0.002 lux F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Shutter Speed | PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s |
| White Balance | Auto, Area white balance |
| Lens Mount | M12 |
| Close Focus Distance | 3.6 mm: 0.8 m, 2.8 mm: 0.5 m, 6 mm: 2.4 m |
| Gain Control (AGC) | Auto, Manual |
| Max. Aperture | F2.0 |
| DORI Distance | Lens 3.6 mm: 55.0 m (Detect), 22.0 m (Observe), 11.0 m (Recognize), 5.5 m (Identify) Lens 2.8 mm: 44.7 m (Detect), 17.9 m (Observe), 8.9 m (Recognize), 4.5 m (Identify) Lens 6 mm: 102.9 m (Detect), 41.1 m (Observe), 20.6 m (Recognize), 10.3 m (Identify) |
| Lens | 3.6 mm (2.8 mm and 6 mm Optional) |
| Lens Type | Fixed- Focal |
| Angle of View | 3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117°; 6 mm: H: 43°, V: 24°, D: 50° |
| Back Light Compensation | BLC/ HLC/ DWD |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Resolution | 1080p (1920 × 1080), 960H (960 × 576/960 × 480) |
| Frame Rate | CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
| Noise Reduction | 2D DNR |
| Privacy Mask | Off/On (8 areas, rectangle) |
| Day/Night | Auto (ICR)/Color/B/W |
| Iris Control | Fixed |
| IR Control | Auto, Manual |
| IR Number | 2 (Warm light), 2 (IR light) |
| IR | IR Range of 30 Mtr., |
| IR Mode | Smart IR&WL, WL Mode, IR |
| Mirror Function | Support |
| Weatherproof Standard | IP66 |
| Power Source | 12 VDC ±30% |
| Power Consumption | Max 3.3 W (12 VDC, LED on) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Dimension | 146.1 mm × 70.0 mm × 69.8 mm |
| Weight | 0.1 |
